2 circuits seperate slip rings

Place of Origin : China

Brand Name : Flyda

Certification : CE ROHS

Model Number : FS-02

MOQ : 1 pc

Price : $1

Packaging Details : standard box

Delivery Time : 3-5 working days after payment

Payment Terms : 100% prepaid

Supply Ability : 5000pcs/week

Delivery method : DHL TNT Fedex UPS...

Contact Now

--Sometimes, separate slip ring(rotor) and brush block(stator) could settle down the problem of

dimension limitation.
--2-10 circuits of brush and rotor suits are available
--9.5mm to 60mm through bore or no through bore are option
--It is specially fit for kinds of precise instruments
--Customization is available as per different requirement

Please contact us, our sales engineers will provide you recommendation or customization.

Specifications
Operating Speed	0-100 rpm
Number of Circuits	2
Voltage	240 VAC/DC
Current Rating	1-3A
Temperature Range	-20℃ to +60℃
Working Humidity	60%RH or higher
Contact Material	Gold to Gold
Lead Size	32 # silver plated copper Teflon^® UL
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	1000 MΩ @ 500 VDC
Electrical Noise	1 mΩMin

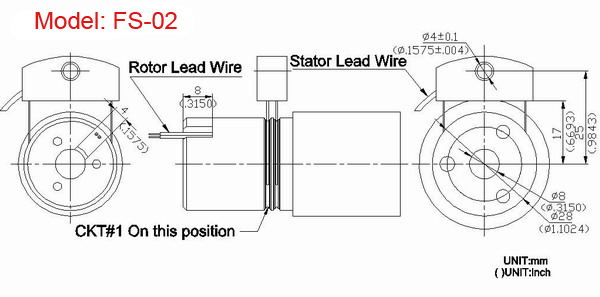

2 circuits seperate slip rings

2 circuits seperate slip rings Images
